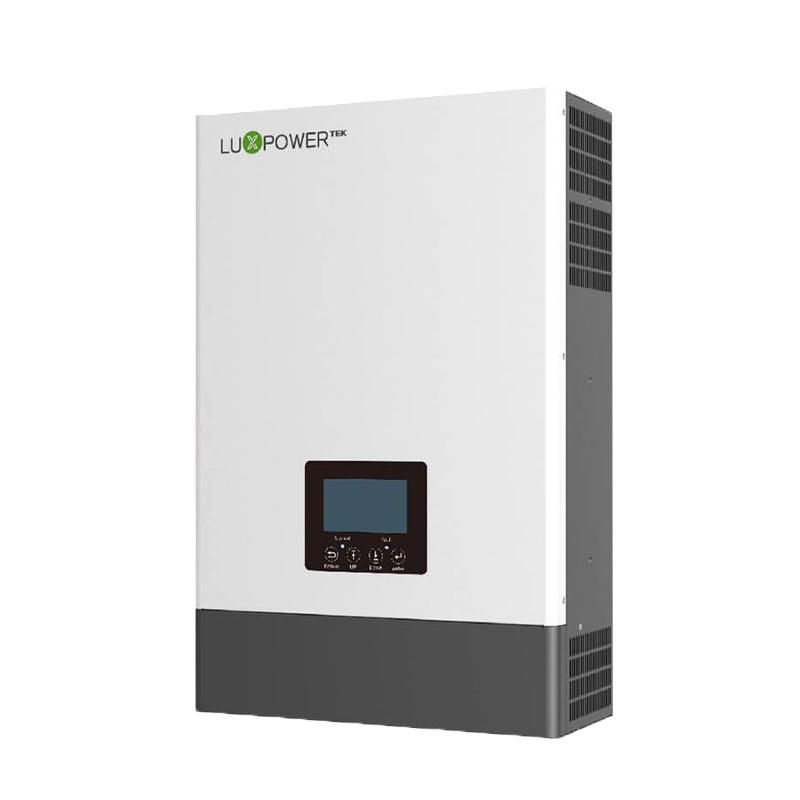

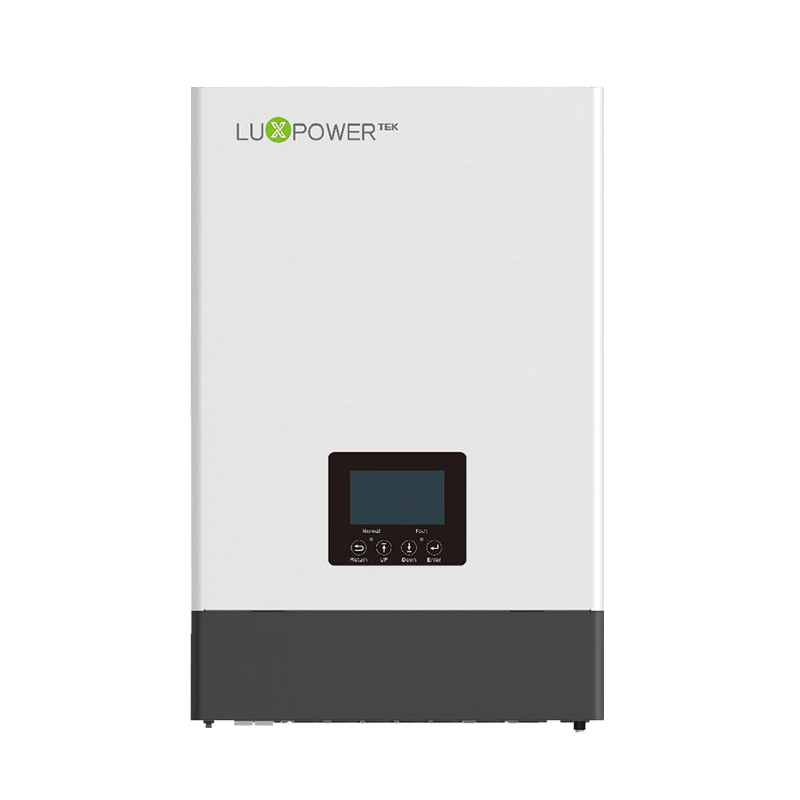

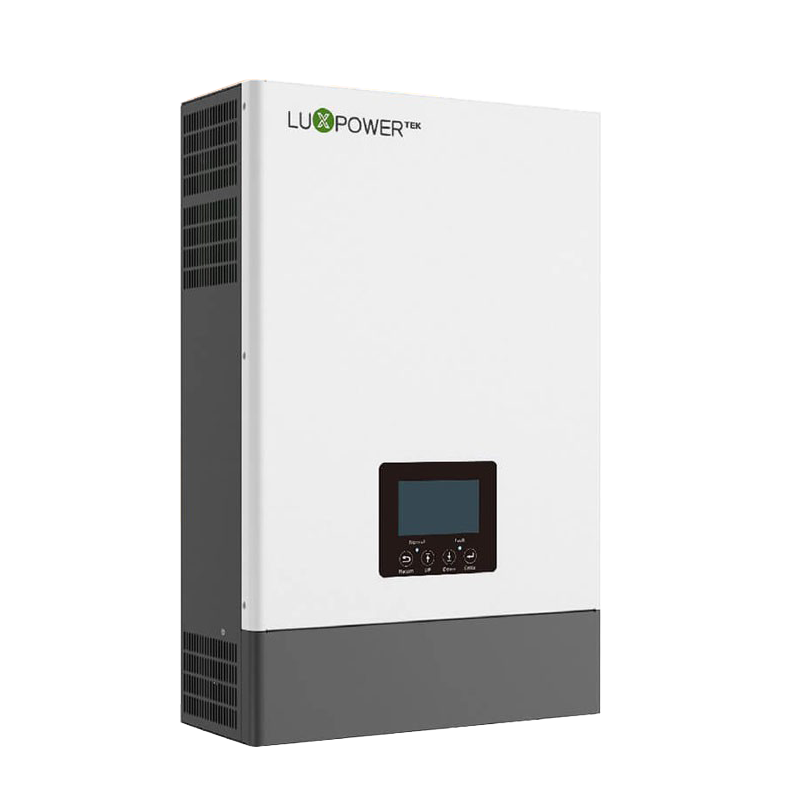

Hybrid solar inverter for off-grid installation LuxPower SNA 6000 WPV
LuxPower, a renowned brand of industrial inverters, introduces its new range of solar inverters for off-grid installations for residential use.
The LuxPower solar inverter can be used without being connected to the electrical grid, with batteries, with a generator, or other sources of energy generation, and can also operate connected to the grid.

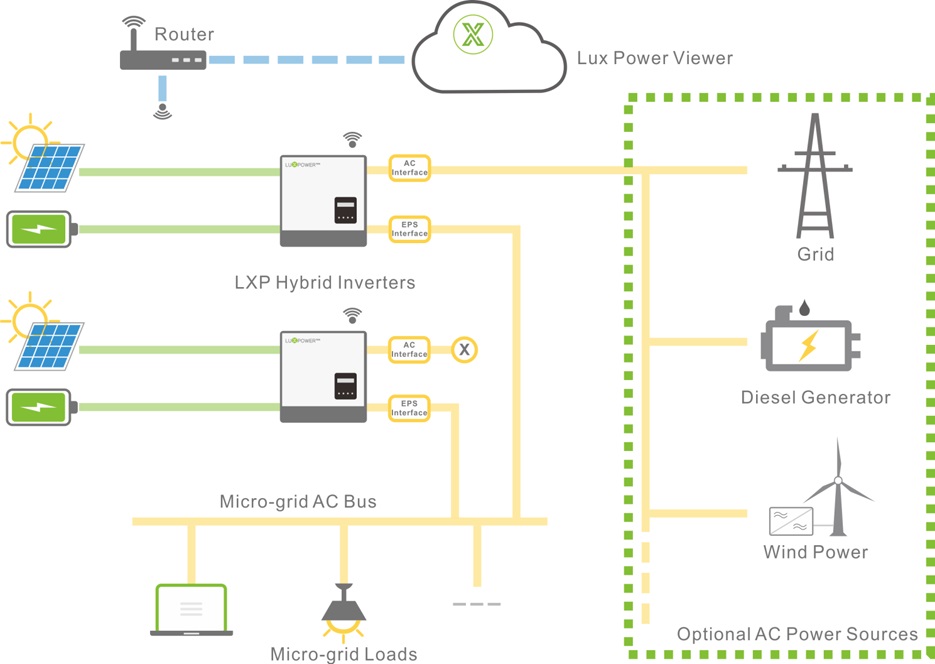

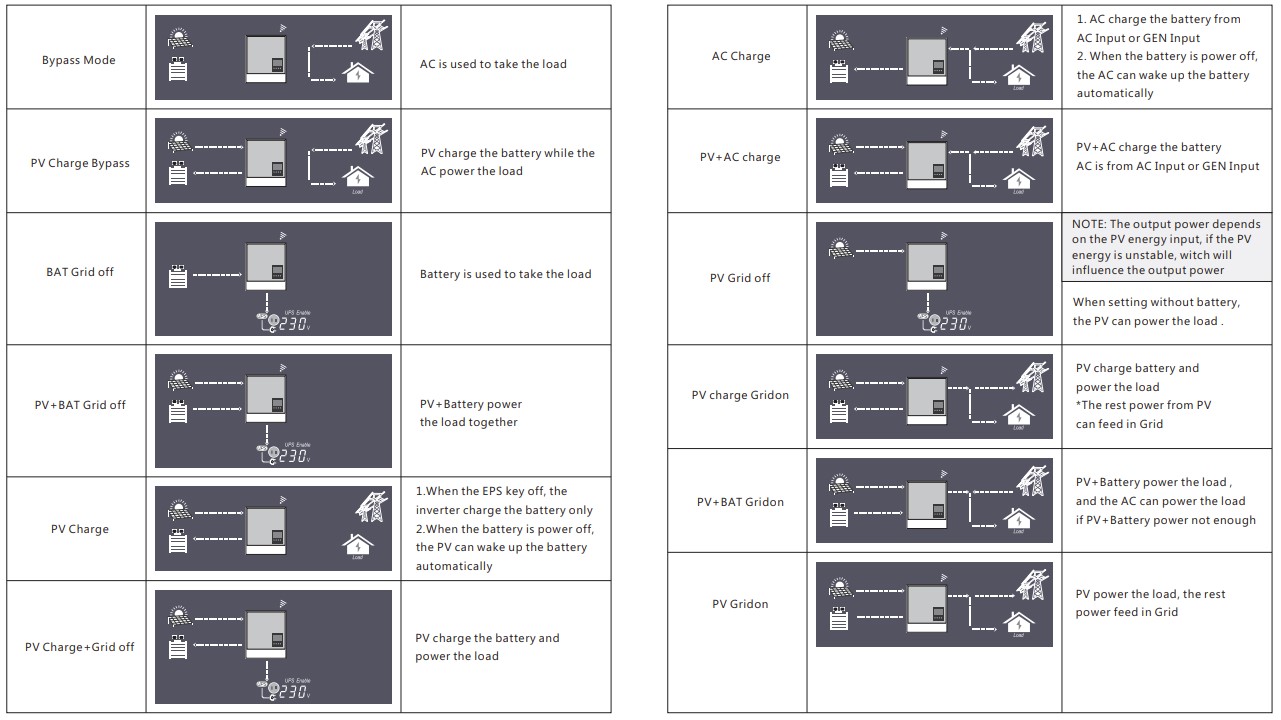

Operating Modes

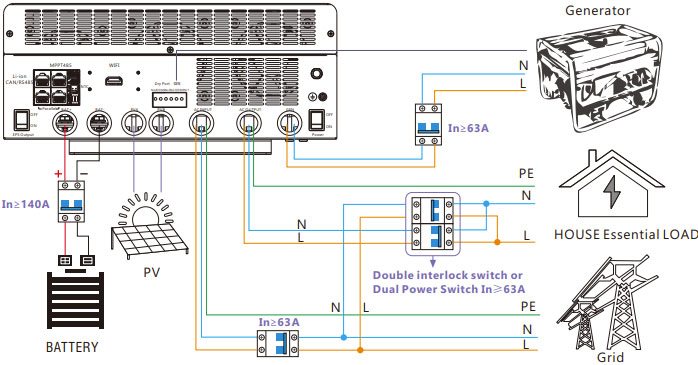

Semi-off-grid: Connection to the grid or generator, the inverter operates connected to the grid or generator. When the photovoltaic energy is not sufficient to power the system's loads, it will draw energy from the batteries. The LuxPower SNA 5000 WPV switches automatically between the grid or the generator when the batteries and solar energy do not provide enough power to complete the loads.
With Batteries: The LuxPower can operate with batteries.
Off-grid: This inverter operates in Off-grid mode. It can be installed without being connected to an external generator or the grid. Thanks to the inverter's charge controller, this process is simple and easy. In this installation model, it is essential to install compatible batteries in order to have power when there is no solar production or when the photovoltaic system falls short depending on the loads. We recommend conducting a study of the energy needs of the off-grid system to determine the number of batteries and the power of the photovoltaic system needed.
Protections
Protection against electrical arc.
Incorporated protections against Type III AC surges.
IP20 protection level. Cooling by built-in fan.
Short circuit protection.
Temperature protection.
Network monitoring.
Reverse polarity protection.
Communication
Performance

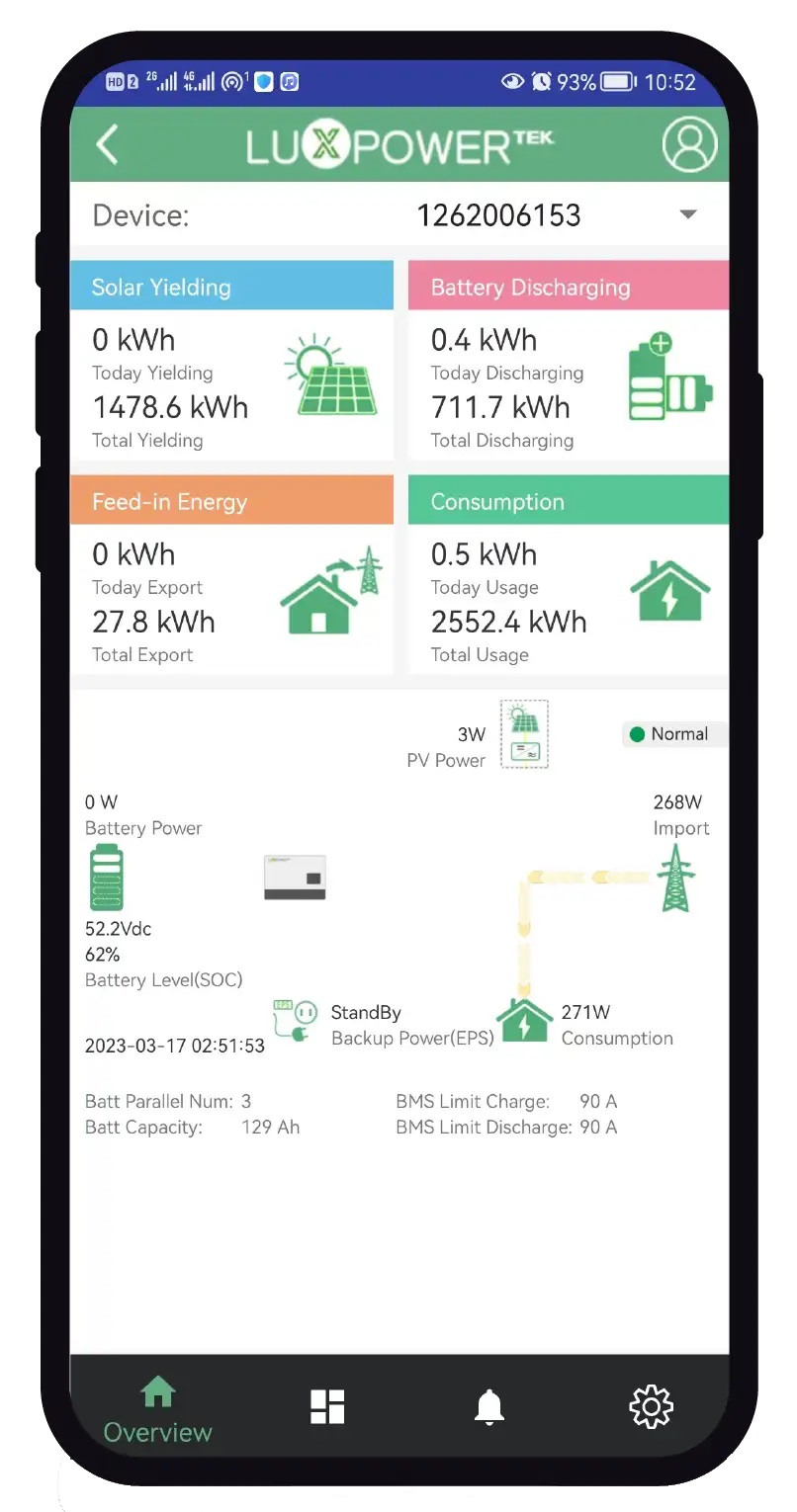

Lux Monitor
The app can be installed on both Android and IOS devices.
Warranty
The inverter comes with a 2-year warranty. The warranty will be applicable as long as the device has been used following the recommendations and respecting the compatibility between the parts.
Luxpower Warranty Policy.pdf
Certifications
IEC 62109-1, IEC 62109-2, IEC 61000.

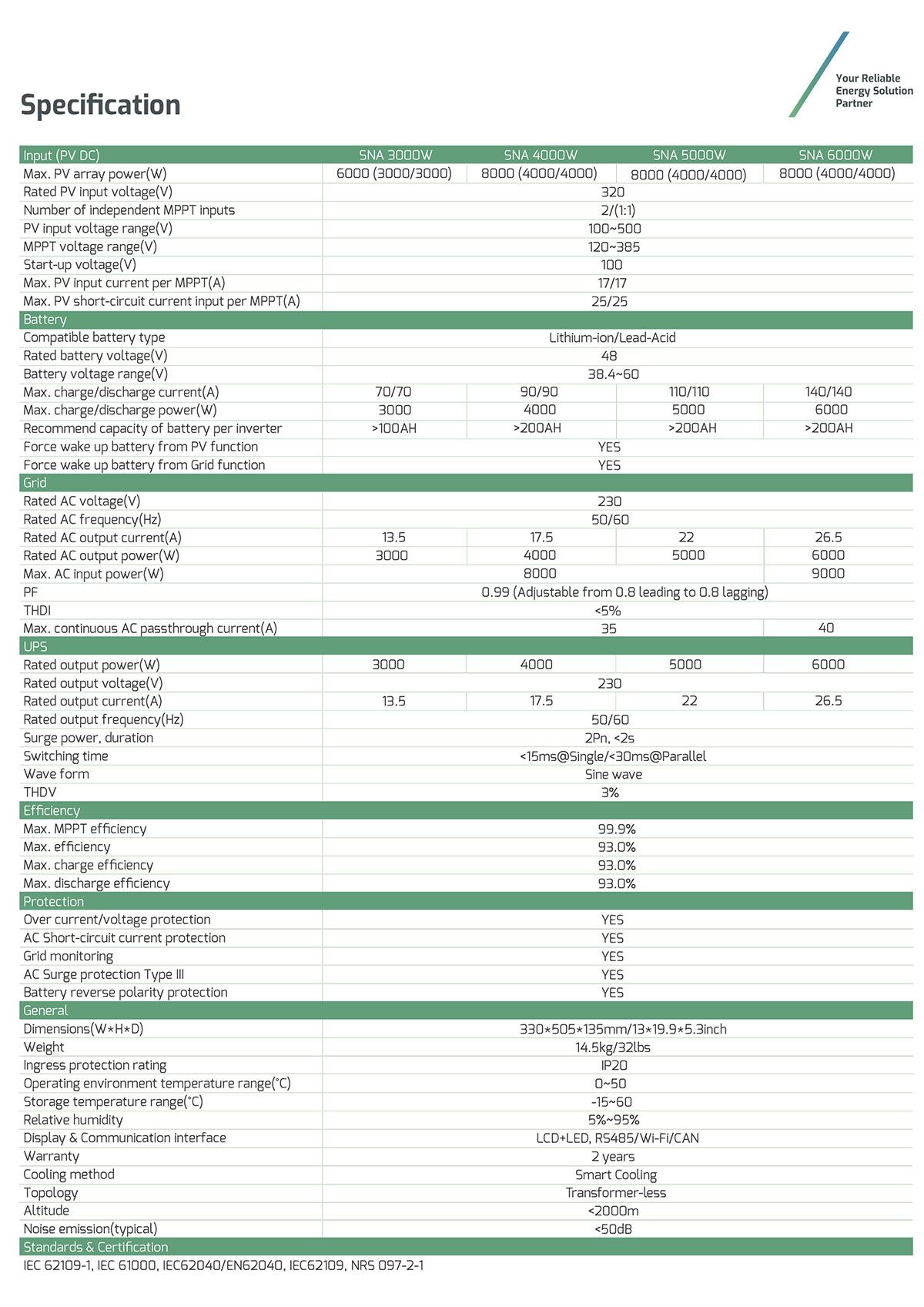

Technical details
Network Type: Single-phase
Output Power: 6000W
Maximum Panel Power: 8000W
MPPT: 2
Max Panel Current: 25A
VOC Range: 500V
MPPT Range: 100-480V
Hybrid: Yes
Battery: List of compatible batteries in Downloads section
Battery charge and discharge: 125/140A
Backup:
Offgrid: Yes
Parallelizable: Yes, up to 16.
Measurement accessory:
Communications: LCD+LED, RS485, Wifi, CAN.
Protection: IP20.
Weight: 14.5 Kg.
Dimensions: 335 x 450 x 160 mm.
Product Warranty: 2 years.
Batteries compatible with LuxPower SNA 6000W Inverter.pdf
CE Certificate LuxPower SNA 6000W Inverter.pdf
LuxPower SNA 6000W Inverter Configuration Manual.pdf
LuxPower SNA 6000W Inverter Installation Manual.pdf
Luxpower SNA 6000W Warranty Conditions.pdf
Luxpower SNA 6000W Warranty.pdf
Technical sheet LuxPower SNA 6000W inverter.pdf
User Manual LuxPower SNA 6000W Inverter.pdf
