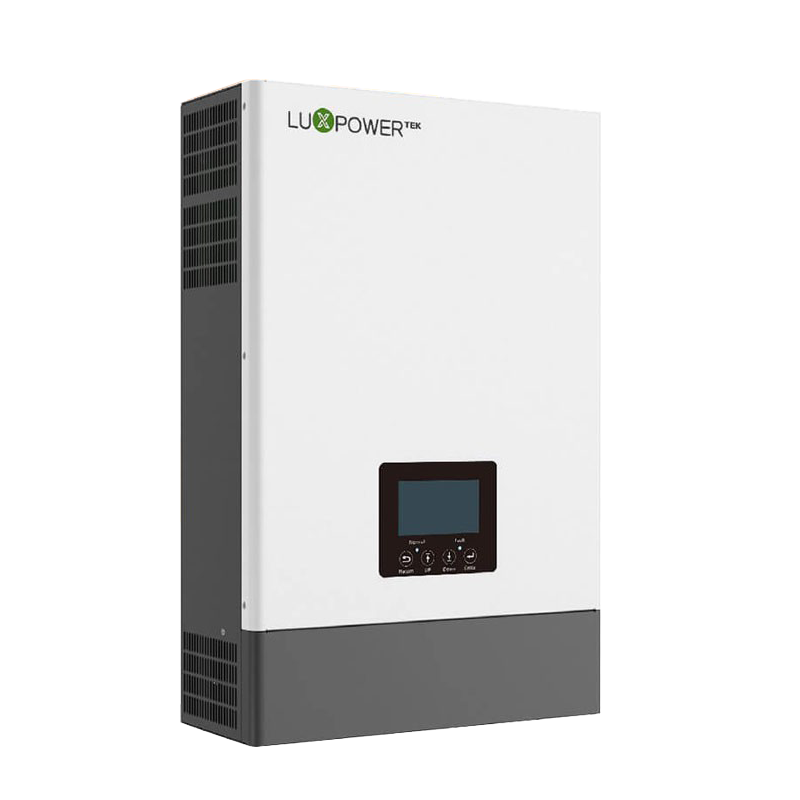

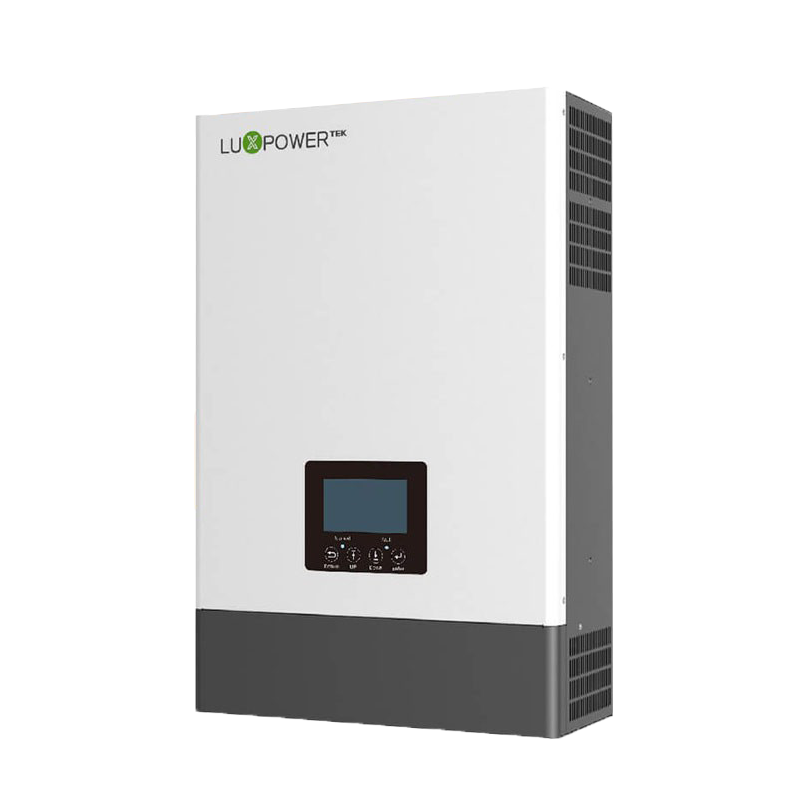

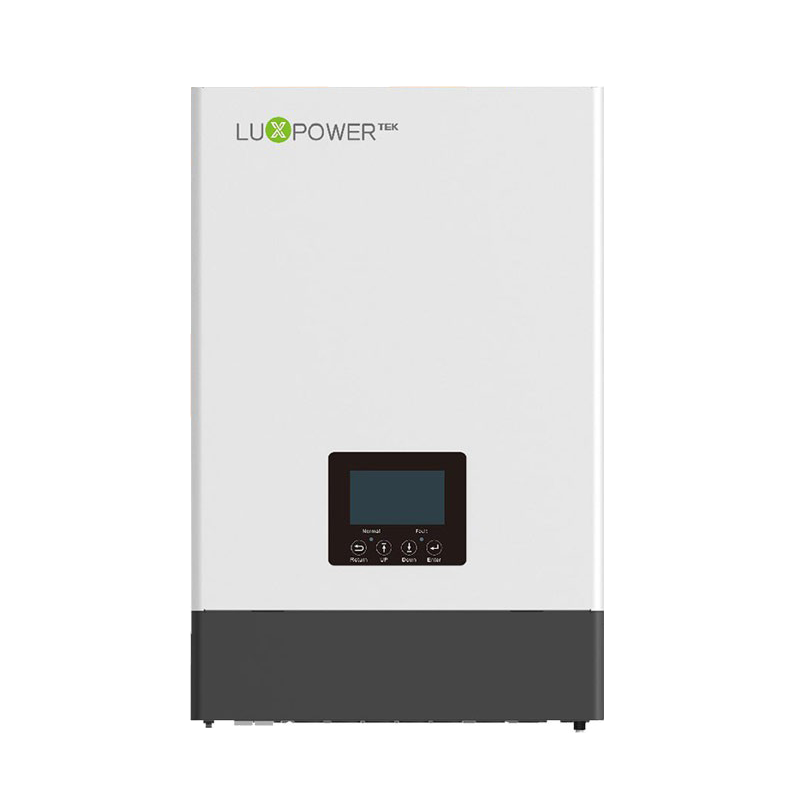

Hybrid solar inverter for off-grid installation LuxPower SNA 5000 WPV

LuxPower, a renowned brand of industrial inverters, introduces its new range of solar inverters for off-grid installations for residential use.

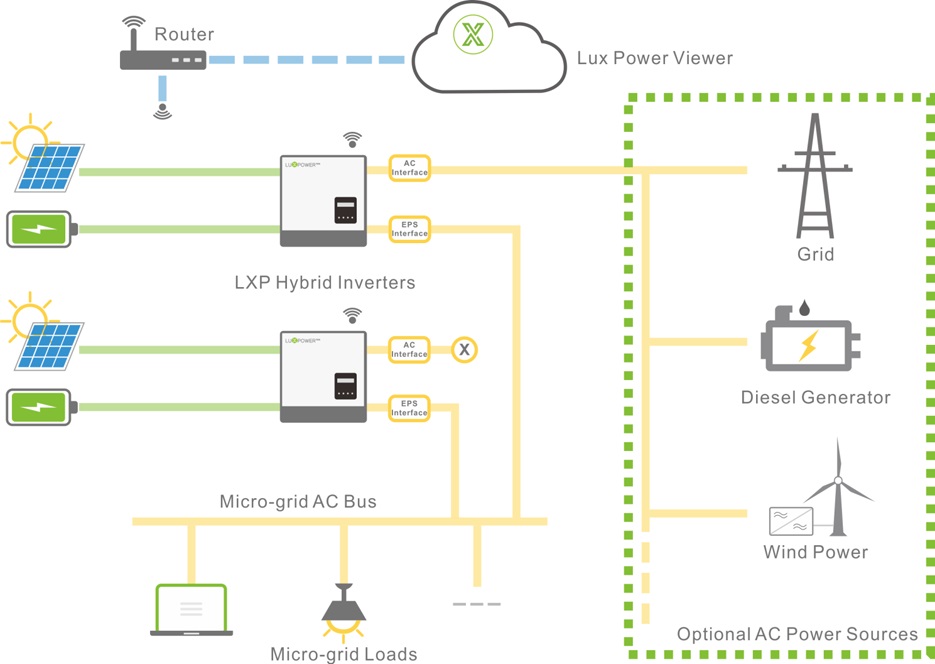

The LuxPower solar inverter can be used without being connected to the electrical grid, with batteries, with a generator, or other sources of energy generation, and can also operate connected to the grid.

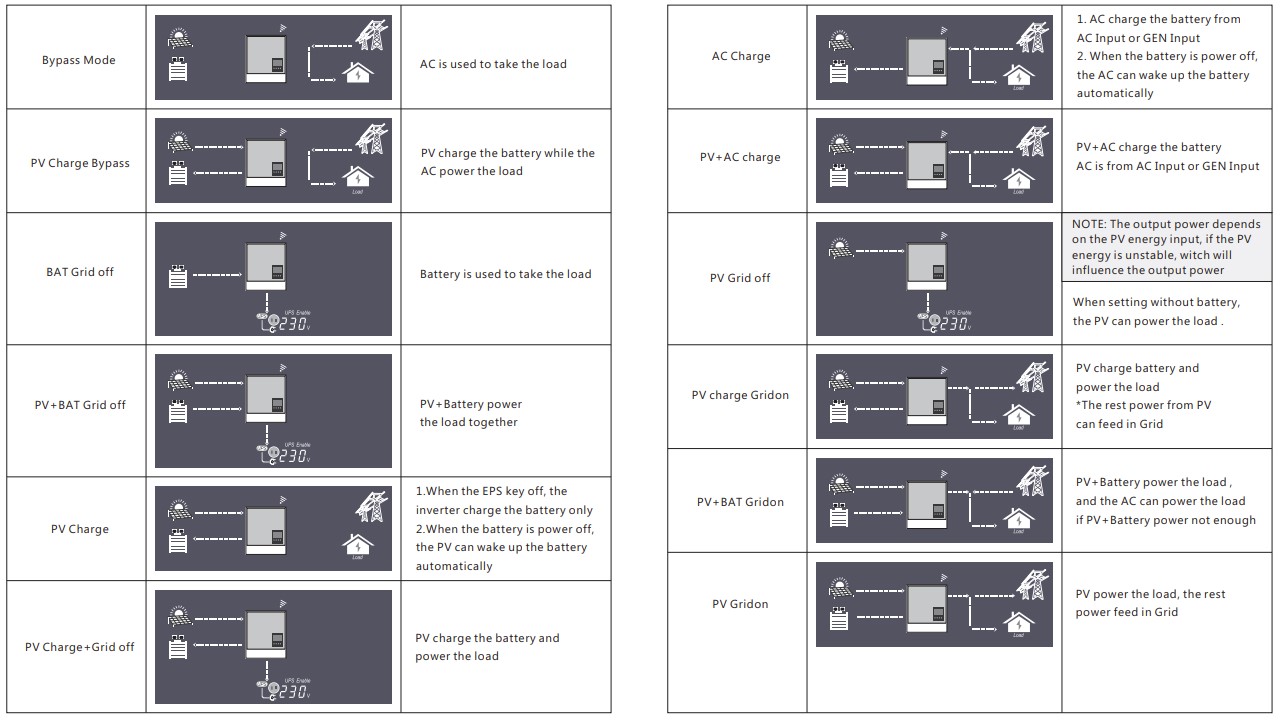

Operating Modes

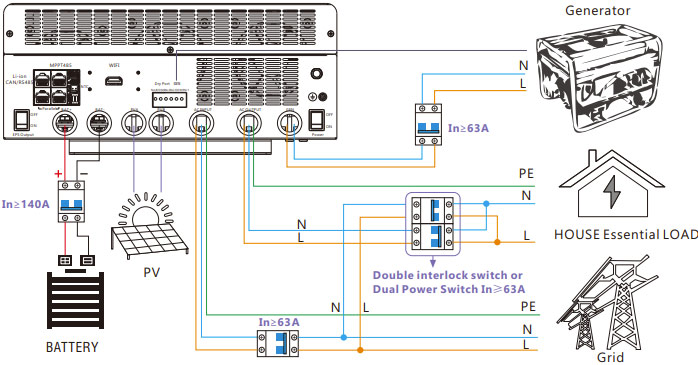

• Semi-off-grid: Connection to the grid or generator, the inverter operates connected to the grid or generator. When the photovoltaic energy is not sufficient to power the system's loads, it will draw energy from the batteries. The LuxPower SNA 5000 WPV switches automatically between the grid or the generator when the batteries and solar energy do not provide enough power to complete the loads.

• With Batteries: The LuxPower can operate with batteries.

• Off-grid: This inverter operates in Off-grid mode. It can be installed without being connected to an external generator or the grid. Thanks to the inverter's charge controller, this process is simple and easy. In this installation model, it is essential to install compatible batteries in order to have power when there is no solar production or when the photovoltaic system falls short depending on the loads. We recommend conducting a study of the energy needs of the off-grid system to determine the number of batteries and the power of the photovoltaic system needed.

Protections

• Protection against electrical arc.

• Incorporated protections against Type III AC surges.

• IP20 protection level. Cooling by built-in fan.

• Short circuit protection.

• Temperature protection.

• Network monitoring.

• Reverse polarity protection.

Communication

• LCD + LED display.

• Communication protocol and functions: RS485.

• Type: single-phase.

• Firmware update and remote control.

Performance

• 99% MPPT efficiency.

• 93% maximum efficiency.

• 93% maximum discharge efficiency.

• 93% maximum charging efficiency.

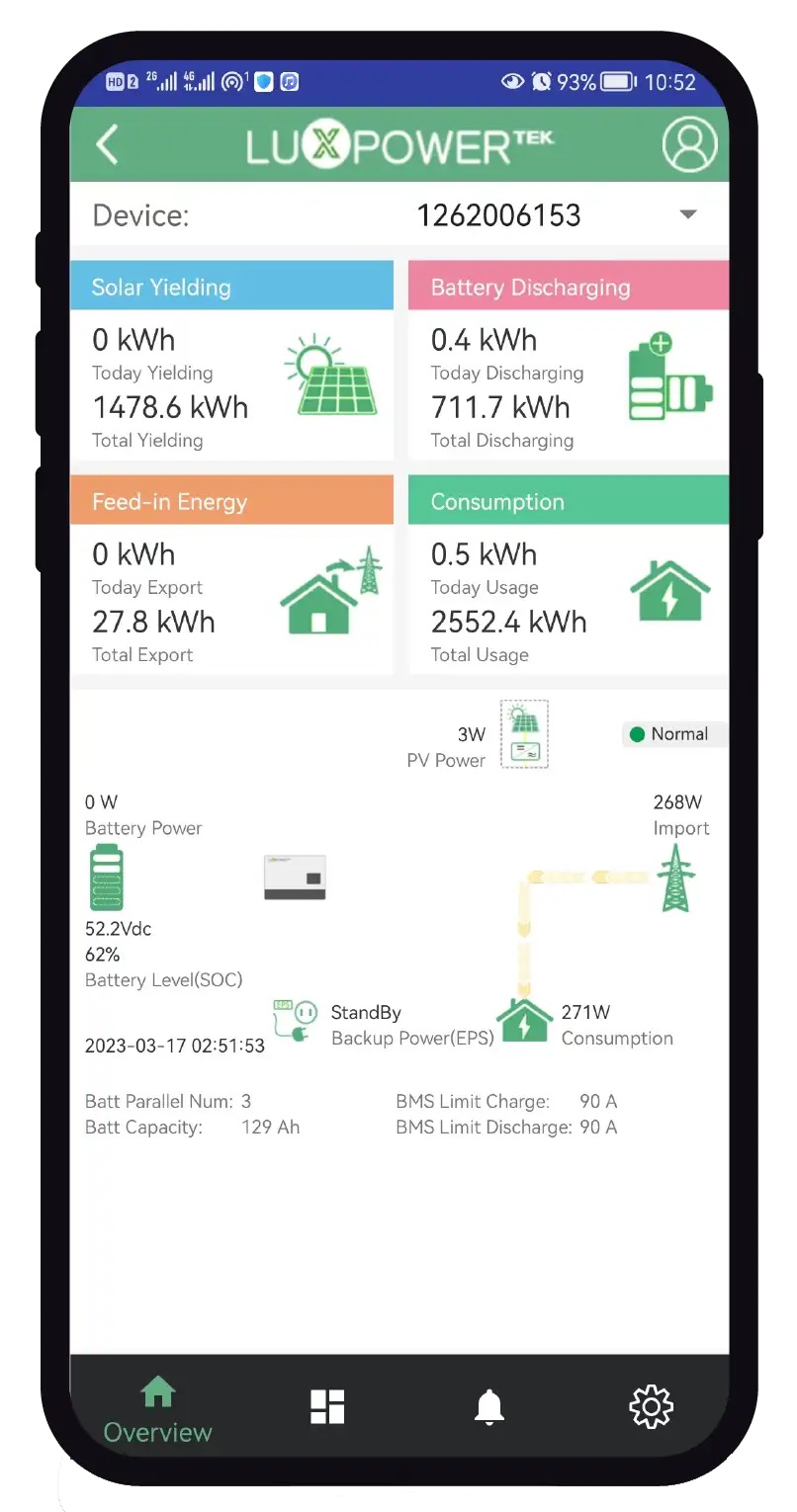

Lux Monitor

The app can be installed on both Android and IOS devices.

Warranty

The inverter comes with a 2-year warranty. The warranty will be applicable as long as the device has been used following the recommendations and respecting the compatibility between the parts.

Luxpower Warranty Policy.pdf

Certifications

IEC 62109-1, IEC 62109-2, IEC 61000.

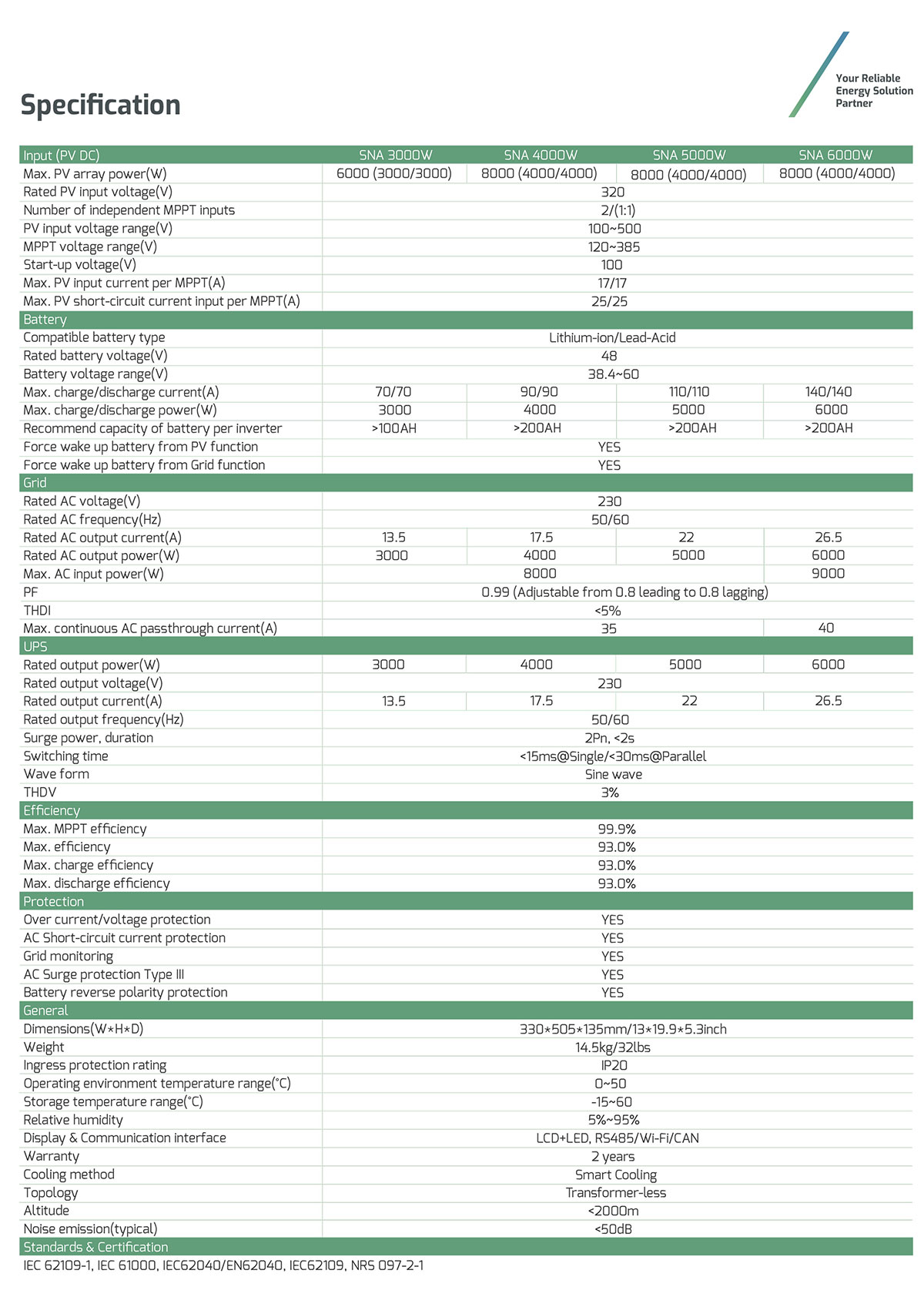

Technical details

• Type of Network:Single-phase

• Output power:5000W

• Maximum power in panel: 8000W translates to "8000 watts" in English.

• MPPT stands for Maximum Power Point Tracking.2

• Maximum panel intensity:25A means 25 amperes.

• VOC Range:500V

• MPPT Range:120-385V

• Hybrid: Yes

• Battery:Pending update of compatible batteries.

• Charge and discharge battery: 110A

• Backup:

• Offgrid: Yes

• Parallelizable:Yes, up to 16.

• Measurement accessory:

• Communications: LCD+LED, RS485, Wifi, CAN.

• Protection:IP20 refers to the Ingress Protection (IP) rating of a device or equipment. In this case, IP20 means that the device is protected against solid objects larger than 12.5mm in diameter and does not have protection against water..

• Weight:14.5 kg.

• Dimensions:335 x 450 x 160 mm.

• Product warranty:2 years.
