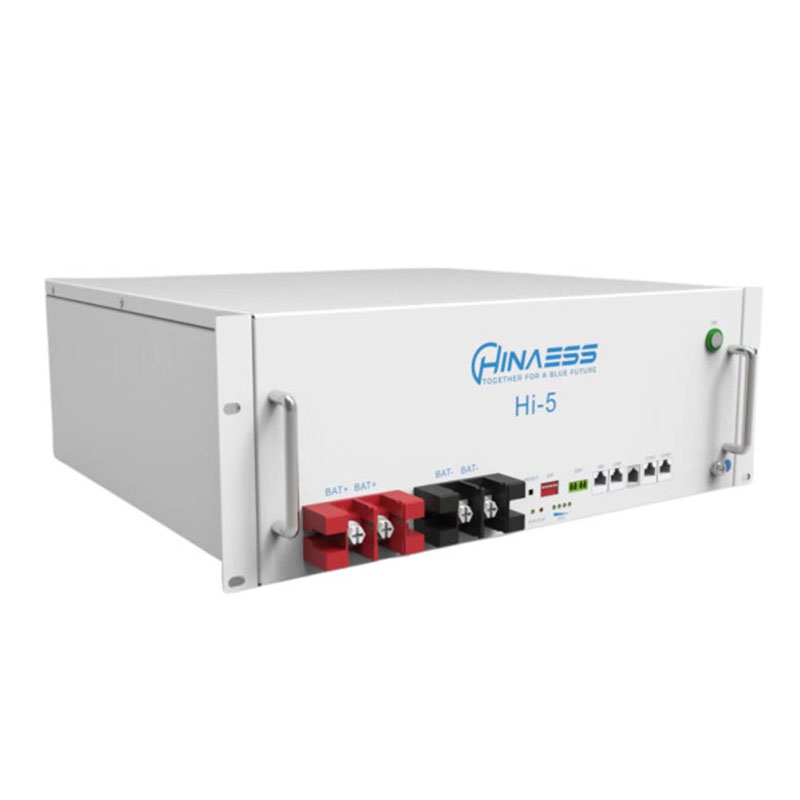

Hi-5 HinaESS Lithium Battery 5.12kWh - 51.2V
Hi-5 Lithium-Ion Battery (LFP) from the manufacturer HinaESS with a capacity of 5.12kWh (100Ah at 51.2V) and 6000 useful life cycles, ideal for solar energy applications, both for photovoltaic self-consumption with storage, and for solar installations isolated from the electrical grid.
This 5.12kWh modular battery is expandable by up to 32 units without the need for any additional equipment and is compatible with most solar inverters on the market.
Inverters compatible with the HinaESS Hi-5 battery
Compatible with Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Solark, SRNE, Must inverters... and parallel connection capacity of up to 32 units. Easy installation thanks to its quick connections to reduce installation times.
HINAESS-Compatible-Inverter-List.pdf
HinaESS Hi-5 Battery Capacity
Each of these modules has a storage capacity of 5.12 kWh . Thanks to their format, up to 32 units can be connected in parallel , achieving a whopping 166.4 kWh of energy storage capacity.
Advantages of LFP technology
They boast a long and extended lifespan, approximately 6,000 cycles and a lifespan of approximately 10 years. The manufacturer guarantees that they arrive with more than 70% of their initial usable capacity. They are easy to expand to achieve large storage sizes; they have an increased depth of discharge (90% DOD); a compact and modular design that allows for easy installation/upgrade; and they can operate in different temperature conditions; and they have an advanced BMS that allows for real-time alarm reporting.

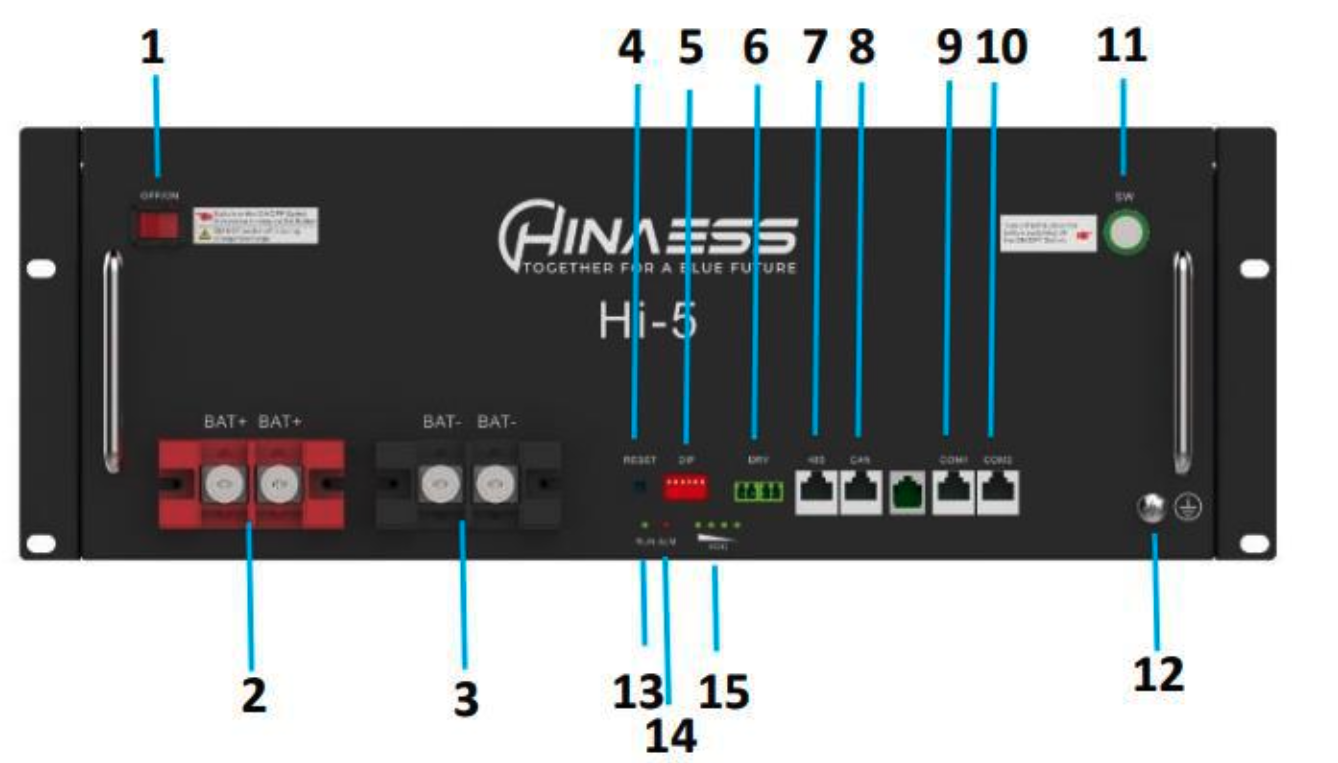

HinaESS Hi-5 Battery Interface
Ignition switch
Positive connector
Negative connector
Reset button
DIP switch
Dry contact pins
RS485 port
CAN port
COM1
COM2
Power button
Land
Execution LED
Alarm LED
Charging status LED
Technical specifications of the Hi-5 battery. HinaESS 51.2V 5.12kWh
| MODEL | HI-5 |
| Cell | LFP |
| Nominal Power | 5.12kWh |
| Nominal Capacity | 100Ah |
Nominal Voltage | 51.2V |
| Maximum load/discharge | 100A |
| Maximum number of parallels | 32 |
| Communication | CAN/RS485 |
| Certifications | CE UN38.3 IEC62619 |
| Protection | Overcharge, overdischarge, overcurrent, overvoltage, and overtemperature protection. Short-circuit protection, reverse connection protection, load balancing, and low state of charge (SOC) protection. |
DOWNLOADS
Download Hi-5 HinaESS 5.12kWh - 51.2V Lithium Battery Manual.pdf
Download HinaESS Hi-5 warranty conditions.pdf
Technical Data Sheet HinaESS Hi-5 Lithium Battery 5.12kWh - 51.2V.pdf
